Introduction:

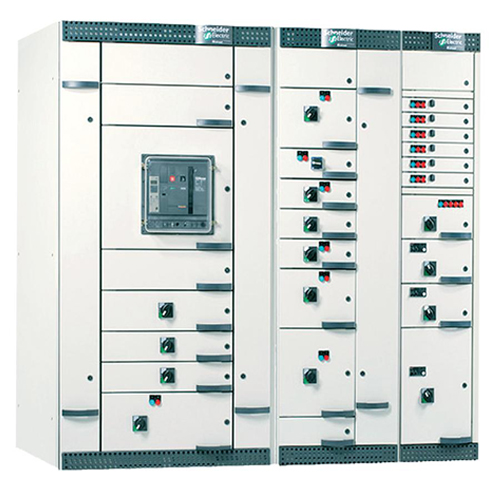

Schneider Blokset switchgear is authorized to be manufactured by our factory with full support from Schneider Electric. Blokset is low voltage switchgear and has reached international advanced level. It is conformity with the standard of GB/IEC. Blokset is present for medium and large industrial sites: mining, manufacturing industry, large commercial building areas and infrastructures where the rated voltage is up to 690V. Technical Features:
◆ Modular design, Interchangeable functional units
◆ Simplified maintenance and installation, possibility of upgrading
◆ Incorporated in all environments, high safety and reliability
◆ Type-tested assemblies of switchgear
◆ Unique design of vertical busbar
Technical Parameters:
Name
Units
Data
Rated voltage
V
400/690
Rated insulation voltage
V
1000
Rated frequency
Hz
50
Horizontal busbar rated current
A
6300
Vertical busbar rated current
A
4000/2100/1500
Horizontal busbar rated short-time current
kA/s
100
Horizontal busbar peak withstand current
kA
220
Vertical busbar rated short-time current
kA/s
85
Vertical busbar peak withstand current
kA
187
Rated impulse voltage
kV
12
Overvoltage category
IV
Degree of pollution
3
Degree of protection
IP31/42/54
Height
mm
2200
Width
mm
700/900/1100
Depth
mm
600/1000

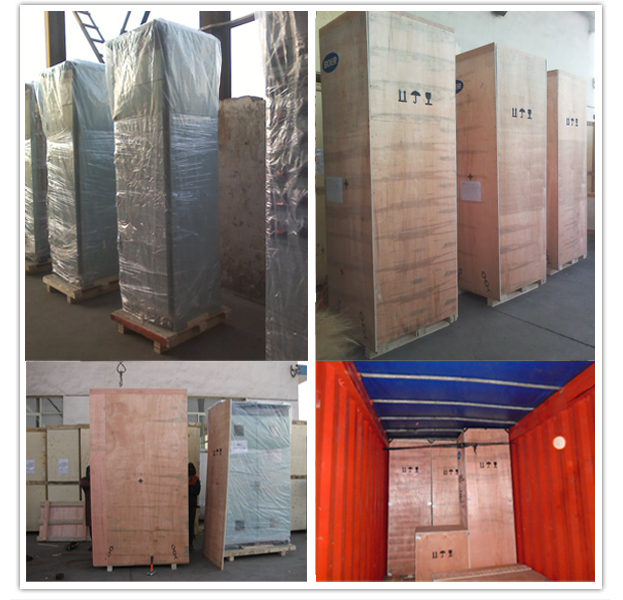

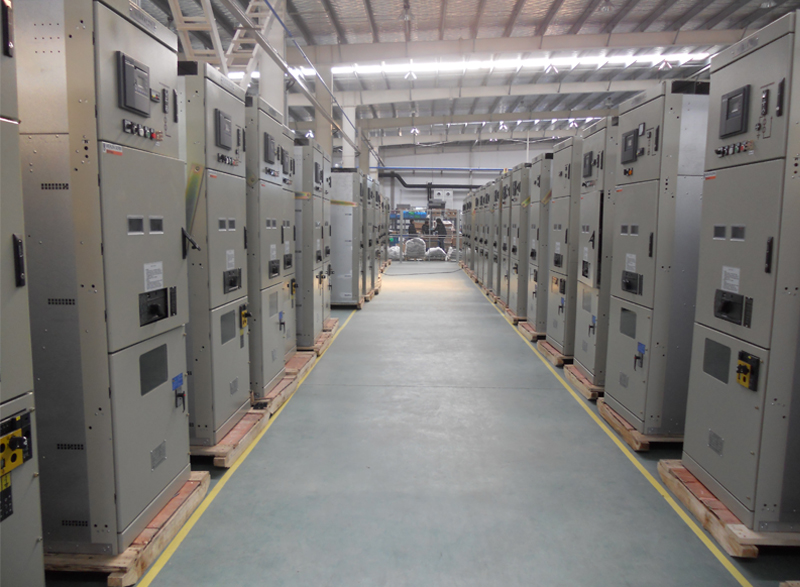

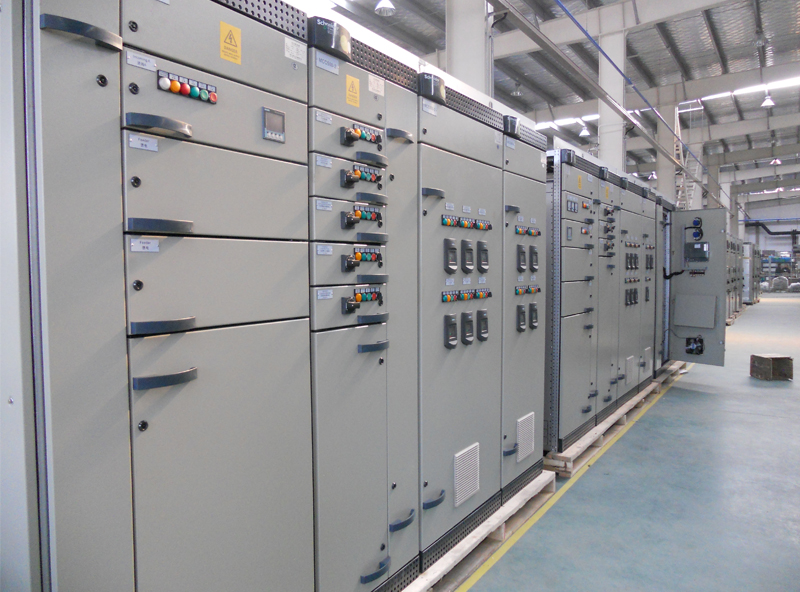

Long-term Customers: Workshop: Packaging:
