Introduction:

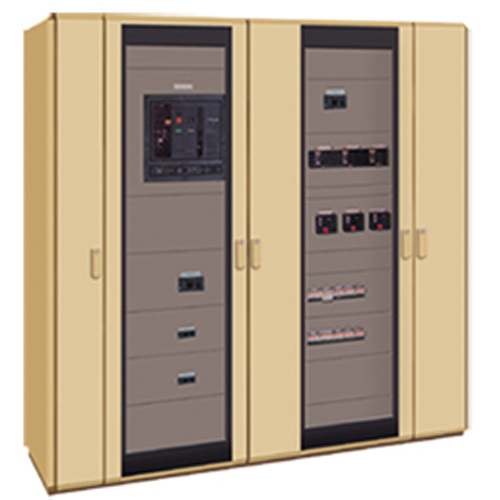

Schneider Prisma switchgear is authorized to be manufactured by our factory with full support from Schenider Electric. Prisma is low voltage switchgear and has reached international advanced level. It is conformity with the standard of GB/IEC. It is present for low voltage distribution and control switchboards for tertiary and industrial buildings where the rated voltage is up to 690V. Technical Features:
◆ Modular design, Interchangeable functional units
◆ Simplified maintenance and installation, possibility of upgrading
◆ Incorporated in all environments, high safety and reliability
◆ Type-tested assemblies of switchgear
◆ Unique design
Technical Parameters:
Name
Units
Data
Rated voltage
V
400/690
Rated insulation voltage
V
1000
Rated frequency
Hz
50
Busbar rated current
A
4000
Busbar short-time withstand current
kA/s
85
Busbar rated peak withstand current
kA
187
Rated impulse voltage
kV
12
Overvoltage category
IV
Degree of pollution
3
Degree of protection
IP31/54
Height
mm
2025
Width
mm
700/900/1100
Depth
mm
400/600/1000

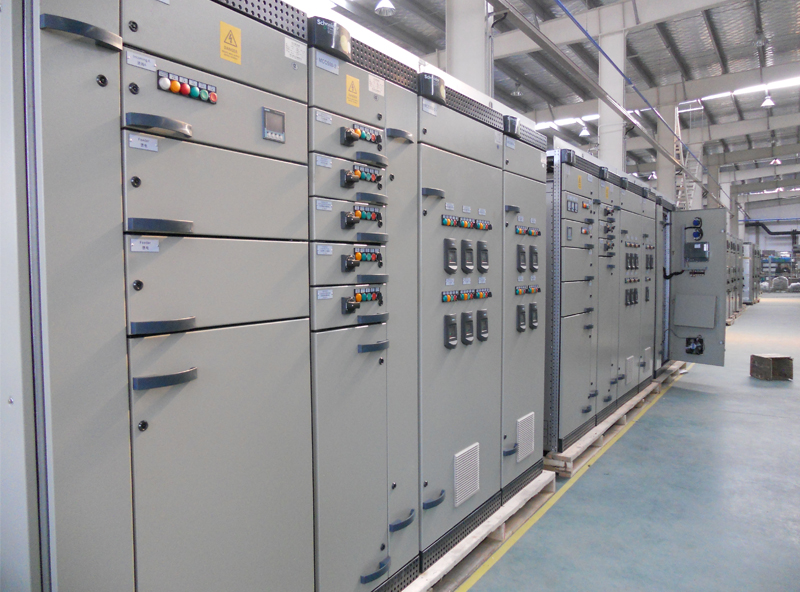

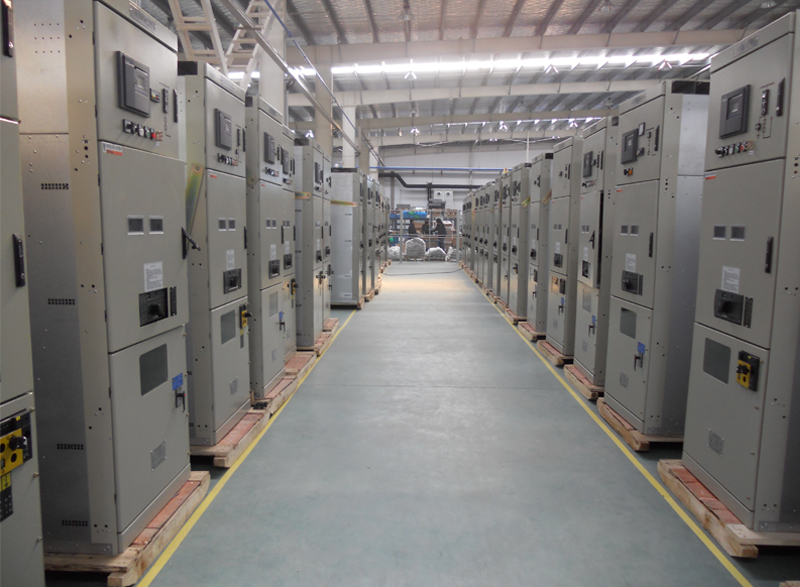

Long-term Customers: Workshop: Packaging:
