Introduction:

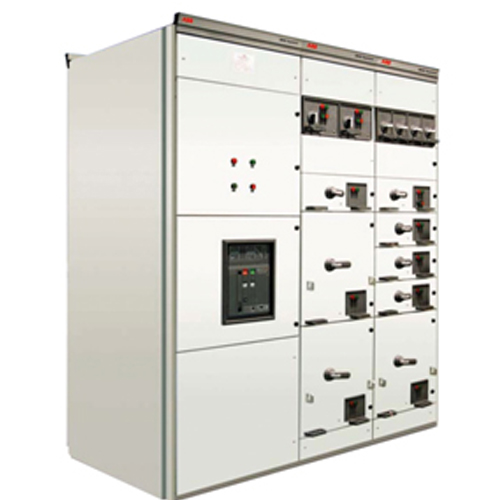

ABB MNS 2.0 switchgear is low voltage switchgear authorized and supported by ABB to be manufactured by our factory. MNS2.0 is proven in terms of quality, performance and safety and has reached the international level. It is widely applied to industrial market, commercial market and residential market. Technical Features:
◆ Modular design, Interchangeable functional units
◆ Simplified maintenance and installation, possibility of upgrading
◆ High safety and reliability
◆ Type-tested assemblies of switchgear
Technical Parameters:
Name
Units
Data
Rated voltage
V
400/690
Rated insulation voltage
V
1000
Rated frequency
Hz
50
Horizontal busbar rated current
A
6300
Vertical busbar rated current
A
2000
Horizontal busbar rated short-time current
kA/s
100
Horizontal busbar rated peak withstand current
kA
220
Vertical busbar rated short-time current
kA/s
85
Vertical busbar rated peak withstand current
kA
187
Rated impulse voltage
kV
12
Overvoltage category
IV
Degree of pollution
3
Degree of protection
IP31/42/54
Height
mm
2200
Width
mm
600/800/1000/1200
Depth
mm
600/1000/1200

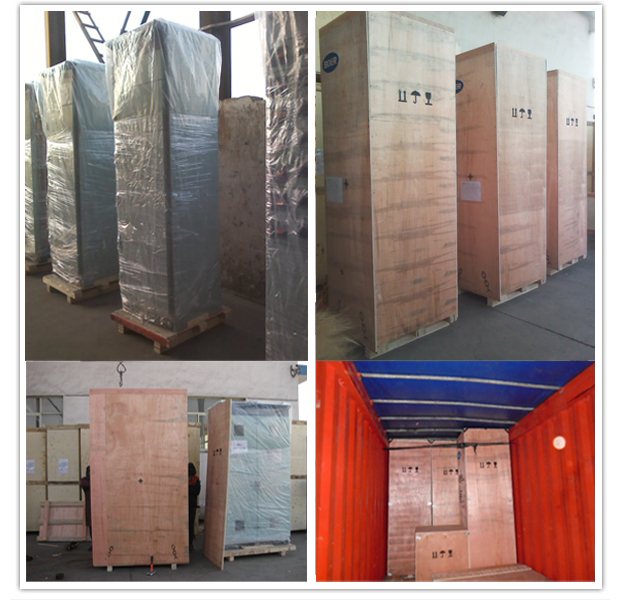

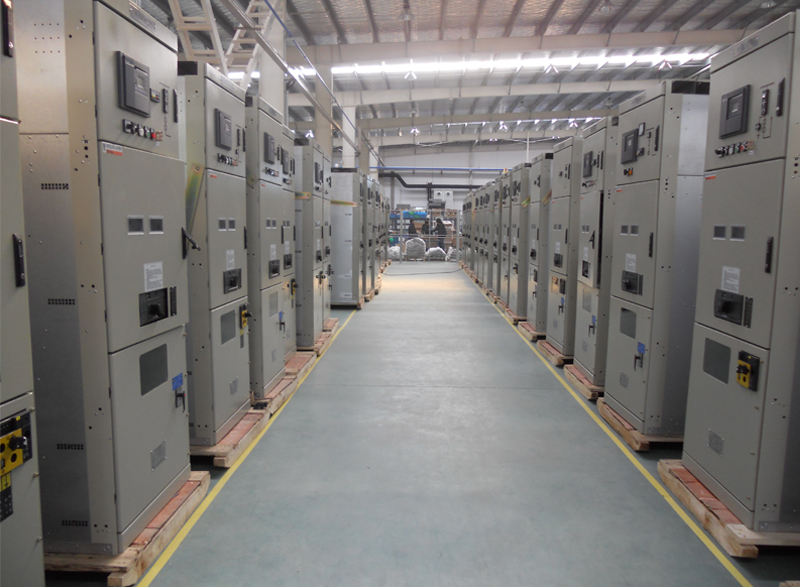

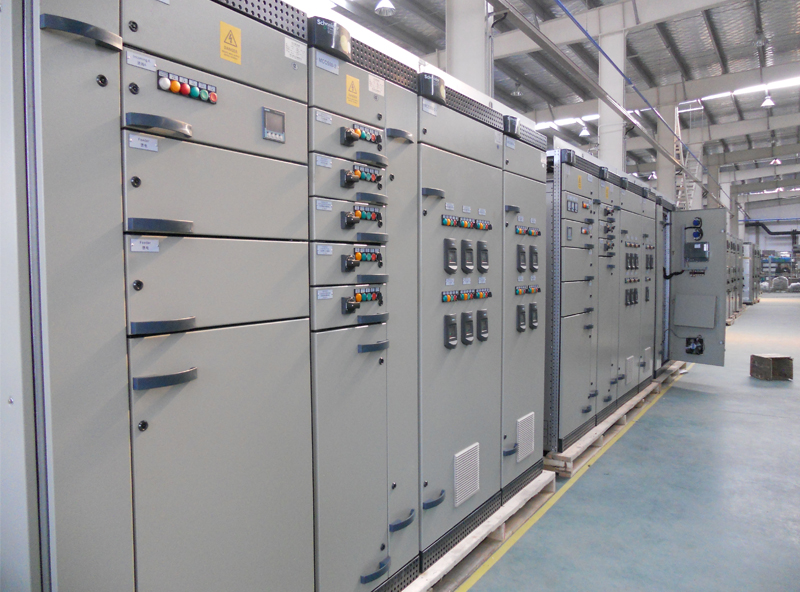

Long-term Customers: Workshop: Packaging:
