Introduction:

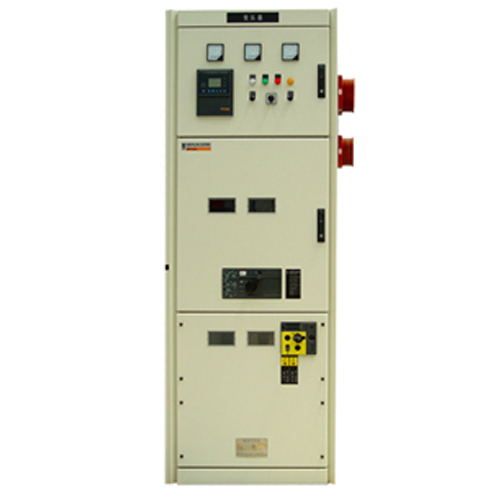

Schneider MVnex metal-clad withdrawable switchgear is authorized to be manufactured by our factory with full support from Schneider Electric. MVnex is medium voltage switchgear and has reached international advanced level. It is conformity with the standard of GB/IEC. MVnex is present for substations, power stations, industrial and mining enterprises and cement plants where the rated voltage is up to 12kV. Technical Features:
◆ Evoils vacuum circuit breaker with arc extinguishing compartment is used.
◆ Unique propelling truck can be easily moved. Simple and reliable interlocking device which can be simply installed
◆ Movable trolley assures the precision of breaker’s structure and guarantees the interchange between breaker and switch.
◆ Simplified and friendly Human-Machine Interface makes the operation safely and easily.
◆ Comprehensive design concept can optimize the electric field.
◆ Design to protect internal arc.
Technical Parameters:
Name
Units
Data
Rated voltage
kV
12
Rated current
A
630/1250/2500/3150
Rated frequency
Hz
50
Rated short circuit breaking current
kA
25/31.5/40
Rated short circuit closing current
kA
63/80/100
1 minute power frequency withstand voltage
kV
42
Impulse withstand voltage
kV
75

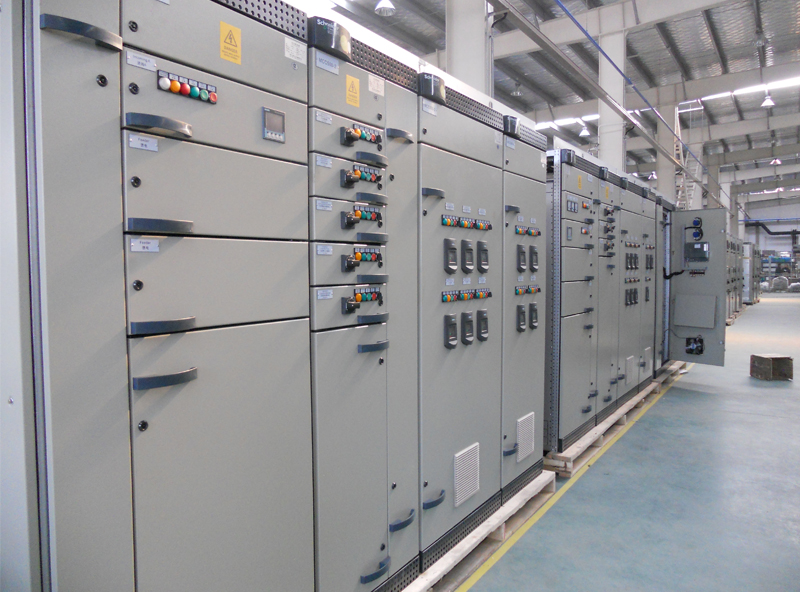

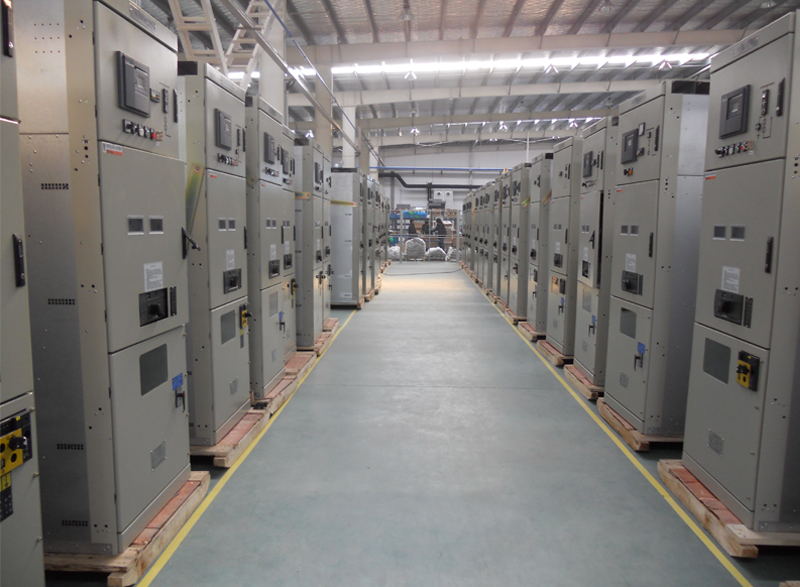

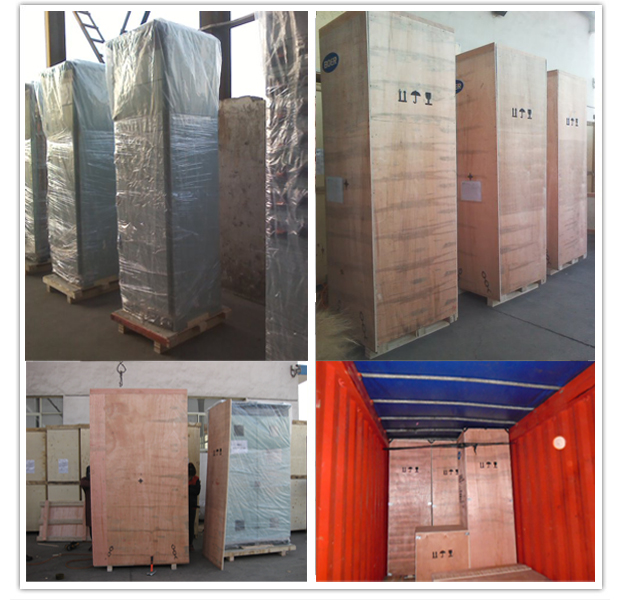

Long-term Customers: Workshop: Packaging:
