Introduction:

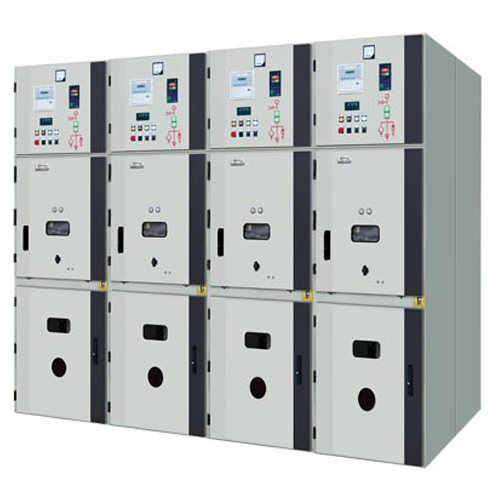

MVset metal-clad withdrawable switchgear is suitable for 3-phase AC50Hz, up to 12KV single busbar and single busbar section system. Mainly applied for power distribution, system control, protection and monitoring. Technical Features:
◆ Interlocking system
◆ Flexible solutions
◆ High level of compatibility
Technical Parameters:
Name
Units
Data
Rated voltage
kV
12
Rated current
A
630/1250/2500/3150/4000
Rated frequency
Hz
50
Rated short circuit breaking current
kA
25/31.5/40
Rated short-circuit closing current
kA
63/80/100
1 minute power frequency withstand voltage
kV
42
Impulse withstand voltage
kV
75

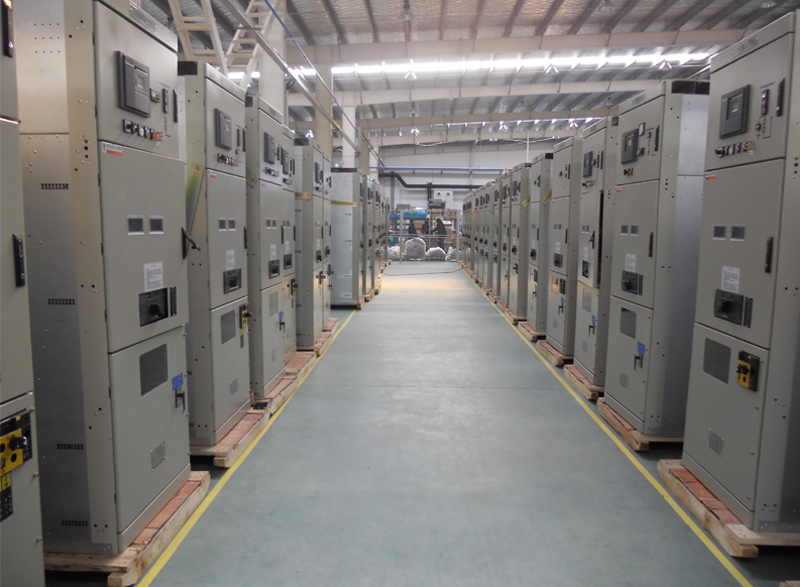

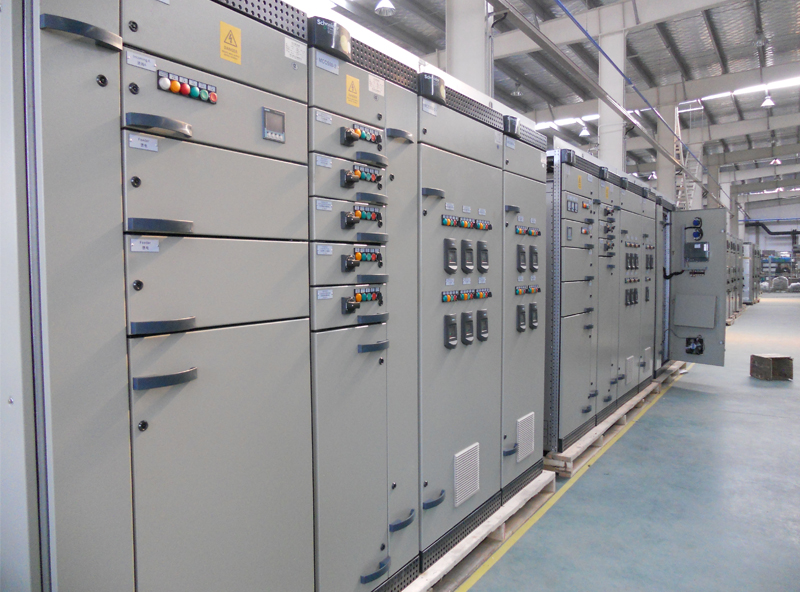

Long-term Customers: Workshop: Packaging:
